1] Create WSServiceHello Endpoint Interface:
WSServiceHello.java
1 2 3 4 5 6 7 8 9 10 | package com.dineshonjava.ws; import javax.jws.WebMethod; import javax.jws.WebService; @WebService public interface WSServiceHello { @WebMethod String sayHello(String name); } |
2] Create WSServiceHello Endpoint Implementation class:
WSServiceHelloImpl.java
1 2 3 4 5 6 7 8 9 10 11 | package com.dineshonjava.ws; import javax.jws.WebService; @WebService(endpointInterface = "com.dineshonjava.ws.WSServiceHello") public class WSServiceHelloImpl implements WSServiceHello { @Override public String sayHello(String name) { return "Hello, Welcome to JAX-WS World and keep learning!! " + name; } } |
3] Create Endpoint Publisher class:
WSHelloPublisher.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 | package com.dineshonjava.publisher; import javax.xml.ws.Endpoint; import com.dineshonjava.ws.WSServiceHelloImpl; public class WSHelloPublisher { // you can use any port no. 9090 or 9191 etc public static void main(String[] args) { Endpoint.publish("http://localhost:9090/WS/WSServiceHello", new WSServiceHelloImpl()); } } /* 1]access wsdl file by typing the following in url http://localhost:9090/WS/WSServiceHello?wsdl 2]References: http://www.dineshonjava.com/2013/06/jax-ws-hello-world-example.html and http://java.dzone.com/articles/jax-ws-hello-world (Both are same program) 3]Search for 'service name' and 'portType name' in wsdl file (1)While creating client, create object of 'service name' ie. <service name="WSServiceHelloImplService"> (2)Also create object of 'port name' ie. <portType name="WSServiceHello"> */ |
4] Run WSHelloPublisher.java program.Your web service is published.
You can check your wsdl at
http://localhost:9090/WS/WSServiceHello?wsdl
Developing WebService Client
1] we need to generate the client stubs.
- Create a new project in eclipse.
- Open your command line, and enter the wsimport command in cmd:
CD <path of new project>\src
wsimport -keep http://localhost:9090/WS/WSServiceHello?wsdl
![]() |
Click the image to zoom |
Note: You may face the following error
wsimport is not recognized as an internal command
Soln: Follow these steps
Update your PATH variable
1)Go to My computer >> right click and select properties.
2)On the properties tab select Advanced system settings
3)Click enviroment variables
4)select path and click edit option
add
";C:\Program Files\Java\jdk1.7.0_60\bin"
at the end.
5)close the cmd and try again.
Done.
2] Lets create client class now.
create WSHelloClient.java under src->com.dineshonjava.client
WSHelloClient.java
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 | package com.dineshonjava.client; import com.dineshonjava.ws.WSServiceHello; import com.dineshonjava.ws.WSServiceHelloImplService; public class WSHelloClient { public static void main(String[] args) { WSServiceHelloImplService service = new WSServiceHelloImplService(); WSServiceHello serviceHello = service.getWSServiceHelloImplPort(); System.out.println("***************Call Started*******************"); System.out.println(serviceHello.sayHello("Rahul ")); System.out.println("***************Call Ended*********************"); } } |
Output:
3] Run above program and you will get the output in console.
***************Call Started*******************
Hello, Welcome to JAX-WS World and keep learning!! Rahul
***************Call Ended*********************
Now Webservice is started and is ready to be tested.
Test in SOAP UI

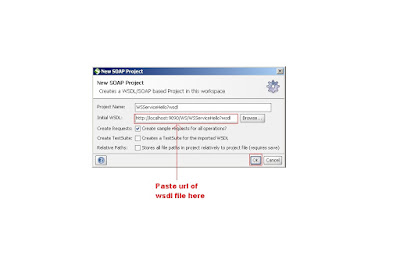

1) Open soap ui.
2) Right click project and click new SOAP project.
![]() |
Click the image to zoom |
